Concorde Cementetious Floor

Concorde Cementetious Floor System


With none-combustible concrete-and-steel composite panel and understructure, CCF System is the strongest, most durable access floor in the world, and is widely used in Office Building, Data Center, Renovation, and Under floor Air Distribution applications.

Zinc Whisker Free To prevent zinc whiskers, CCF System does not use electro galvanized finishes on any of its access flooring.

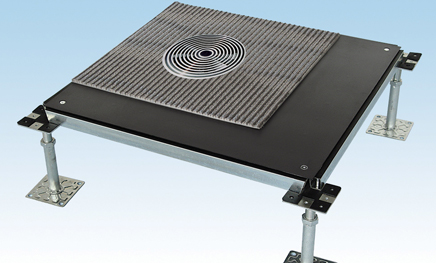

Bare Finished CSFS Panel + Corner Lock System


Dimension: 600mm x 600mm or 24''(609.6mm) x 24''(609.6mm),
Designed for Office Building application,
Steel pedestals provide excellent impact load performance,
Vibration proof locking nut for fast and stable installation.

CSFS System PSA MOB Grade Concentrated Load (kN, 2.4mm) Uniform Load (kN/m²) Safety Factor Soft body Impact (40kg, 1000mm) Hard body Impact (4.5kg, 600mm)
CSFS800 + Corner Lock System Medium 3 12 3 pass pass
CSFS1000 + Corner Lock System Heavy 4.5 20 3 pass pass
CSFS1250 + Corner Lock System Extra Heavy 5.5 30 3 pass pass
CSFS1500 + Corner Lock System Extra Heavy 5.5 30 3 pass pass

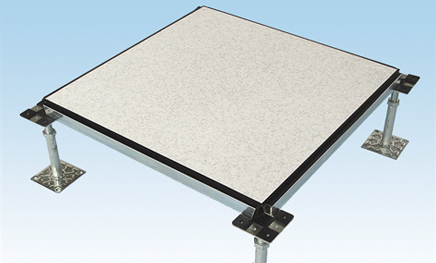

HPL/Vinyl Finished CSFS Panel + Rigid Grid System


Dimension: 600mm x 600mm or 24''(609.6mm) x 24''(609.6mm),
Designed for Data Center application,
HPL/Vinyl finishes are factory-bonded on access floor panels,
Perforated panel airflow rate 20%~ 40%, dampers optional,
Steel pedestals provide excellent impact load performance,
Vibration proof locking nut for fast and stable installation,
Rectangular stringer provides excellent loading performance.

CSFS System PSA MOB Grade Concentrated Load (kN, 2.4mm) Uniform Load (kN/m²) Safety Factor Soft body Impact (40kg, 1000mm) Hard body Impact (4.5kg, 600mm)
CSFS800 + Corner Lock System Medium 3 12 3 pass pass
CSFS1000 + Corner Lock System Heavy 4.5 20 3 pass pass
CSFS1250 + Corner Lock System Extra Heavy 5.5 30 3 pass pass
CSFS1500 + Corner Lock System Extra Heavy 5.5 30 3 pass pass
