Concorde Raised Flooring
A raised floor, raised flooring or access flooring also raised access computer floor are the name given to floor that provide an elevated structural floor normally above a concrete slab to create a hidden void for the passage of mechanical and electrical services.
Raised flooring is widely used in modern office buildings, and in specialized areas such as command centers, IT data centersand computer rooms where there is a requirement to route mechanical services and cables, wiring, and electrical supply.
In telecom application and Data centers underfloor air distribution is a more common way to cool the equipments by using the void below the raised floor as aplenum chamber to distribute conditioned air.
Concorde Cementetious Floor System
With none-combustible concrete-and-steel composite panel and understructure, CCF System is the strongest, most durable access floor in the world, and is widely used in Office Building, Data Center, Renovation, and Under floor Air Distribution applications.
Zinc Whisker Free To prevent zinc whiskers, CCF System does not use electro galvanized finishes on any of its access flooring.

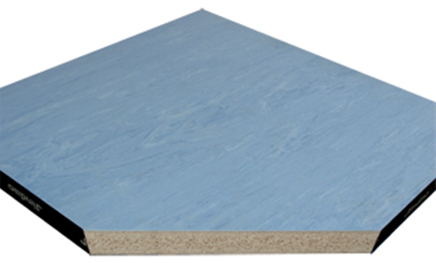

Concorde Wooden Floor System
Modular system made of chipboard, composed of wood core particles bound together by heat hardener resins and obtained with a continuous process of thermo-pressing so as to guarantee high homogeneity of mechanical characteristics and dimensional stability, and is widely used in Office Building, Center, Renovation, and Distribution applications.

Concorde Floor Covering
One of the advantages of a raised access floors is that it is fitted dry, in a very small short space of time and its flexibility makes it possible to overcome any difficulties on the commercial building’s floor slab. By offering a wide variety of Aesthetical Finishes, it is an extremely versatile system which gives the designer great freedom of action.

Concorde Rigid Grid System
Concode have high grade metallic understructure offers superior strength and expanded bridging capability, with standard finished floor heights range from 12 to 94 inches.The understructure consist of Primary and Secondary Stringers,Concorde Rigid Grid System is 600mm x 800mm. Pedestal layouts with as much as 47" on center offer greater utility aisles and cableways in the plenum. With uniform load ratings of up to 1500 lbs/sf and concentrated loads of up to 2500 lbs.
Catalogue: Rigid Grid System Catalogue
